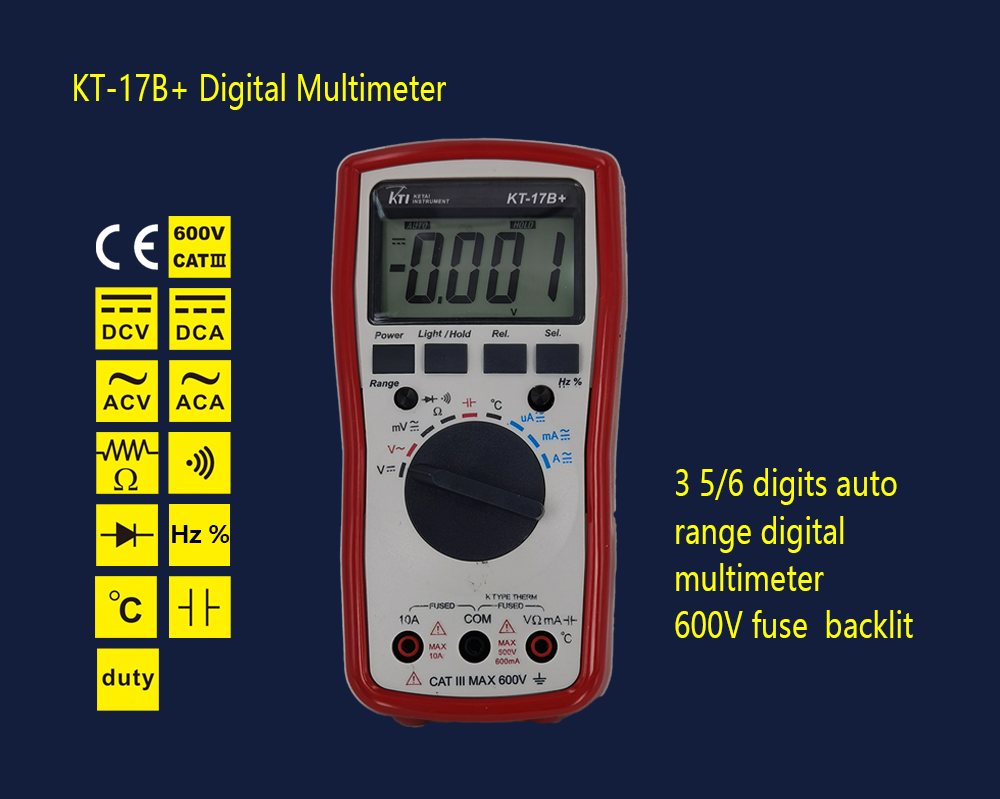

KT17-B+ 3 5/6 Digital Multimeter

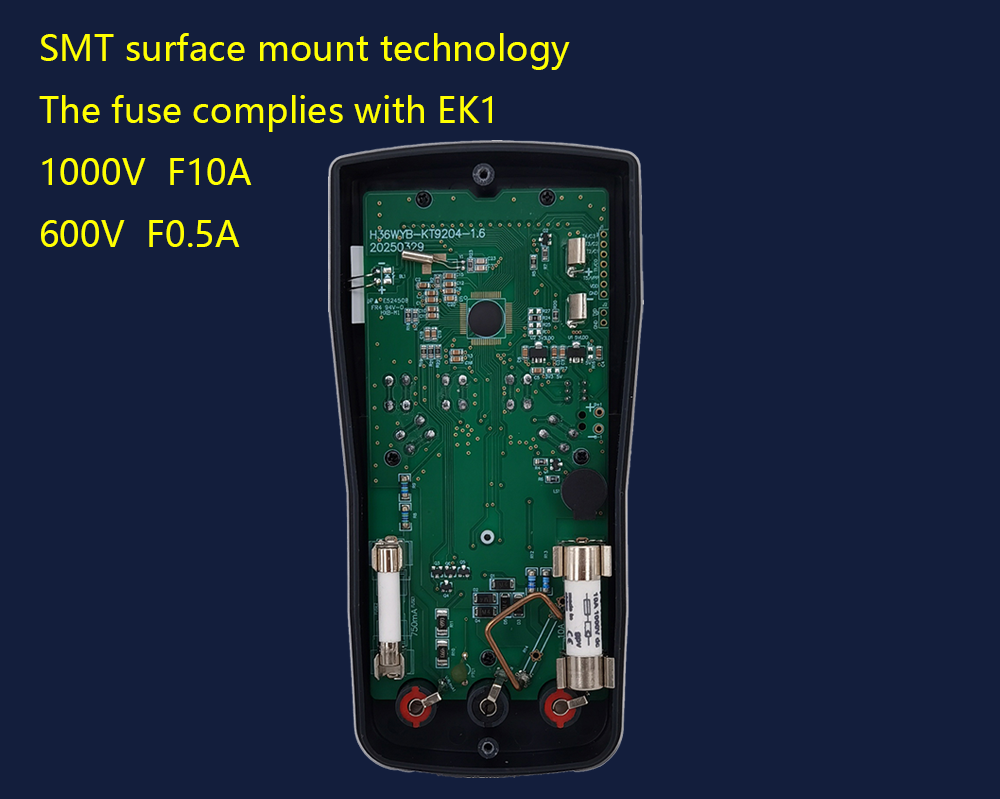

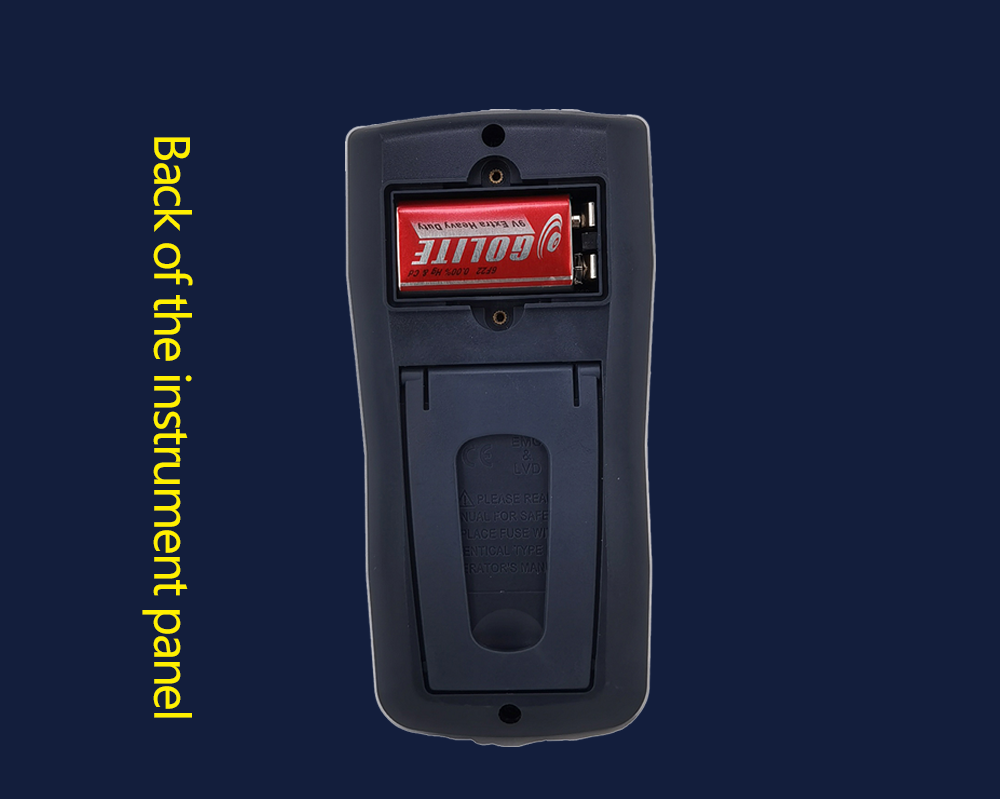

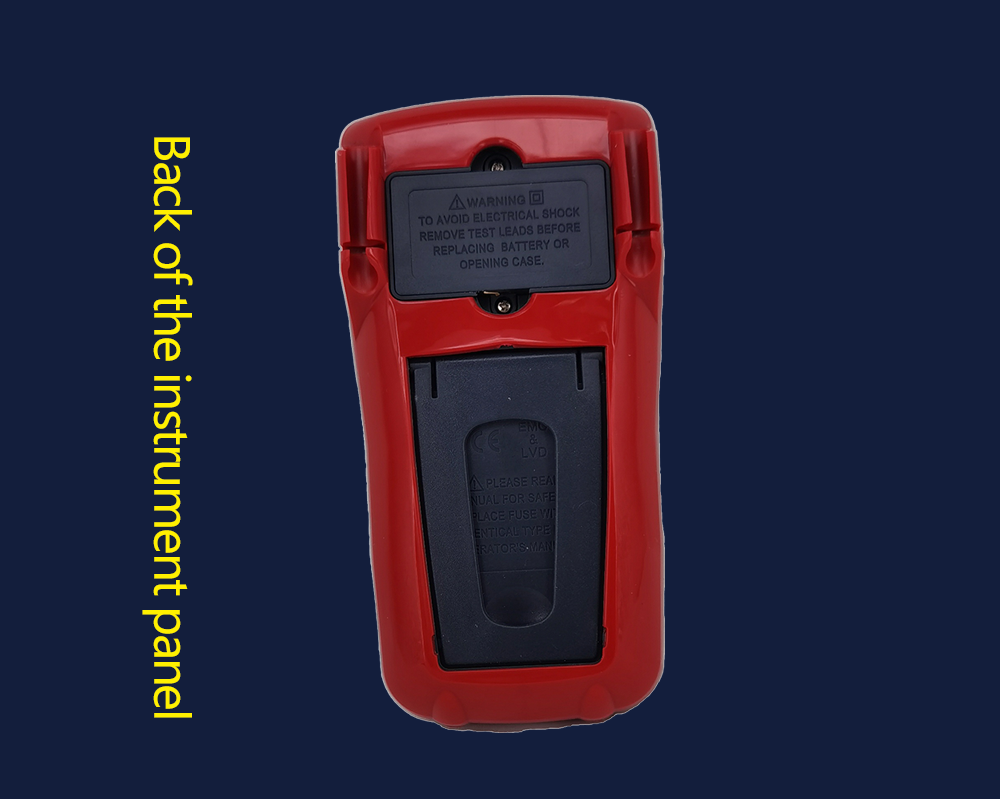

The exterior design adopts typical European design, simple and clear. Safety standards comply with CAT III 600V CAT II 1000V Ceramic tube fuses F0.5A/600V&F10A/1000V Certified by LVD, EMC, and ROSH The battery door is designed behind the instrument panel for easy battery replacement. OEM can be paired with different colored shells and sheaths.
3 5/6-digit self adjustable range digital multimeter, displaying a reading of 5999
● Overload protection
● Backlight function
Duty cycle: 0.1%~99.9%
Temperature measurement up to 750 ℃
AC/DC voltage can be measured from 0 to 600V
AC/DC current can be measured from 0 to 10A
Resistance measurement can measure 0~40M Ω
● Capacitance measurement can measure 0~1000μ F
Frequency measurement can measure 0~10MHz
● Diode testing
Accessories include: 9V battery, sheath, probe, K-type probe, instruction manual, color box
Parameters:
DC voltage 600m/6/60/600V ± (0.5%+4d)
AC voltage 6/60/600V ± (1.0%+8d)
DC current 600 μ/6m/60m/600m/6/10A ± (1.5%+5d)
AC current 600 μ/6m/60m/600m/6/10A ± (2.0%+8d)
Capacitor 4nF/40nF/400nF/4uF/40μF/100μF/1000μF ± (3.5%+8d)
Frequency 100/1K/10K/100KHz/1MHz/10MHz ± (0.5%+4d)
Resistors 600/6K/60K/600K/6M/60M Ω± (1.2%+5d)
The forward DC current of the diode test is about 0.5mA, and the reverse DC voltage is about 1.5V
Temperature measurement -40 ℃~750 ℃± (0.75%+3 ℃)
Operating temperature 0~40 ℃, humidity<80%
Product size 170x85x46mm
Net content is about 350g, including battery
Compliant with international safety standards EN61010-1, CAT III, 600V
This product is a highly sensitive and accurate analog multimeter.
Please refer to user's manual before operating for safety reason or faulty use.
If there is any doubt or question in usage, user can consult the manufacturer for help.
User should be sure of understanding the full content of the user manual before using.
Always remember: make sure the range is in the right position in the first place, then check the test leads.
Read the SAFETY CAUTION, Maintainance and repair in the user manual.
