● 14 ranges in 6 functions
● Overload protection
● AC/DC voltage measurement up to 500V
● DC current measurement up to 250mA
● Resistance measurement up to 1MΩ
● Battery test 1.5V and 9V
● Input impedence: 2KΩ/ VDC/ VAC
● Fuse: F500mA/250V

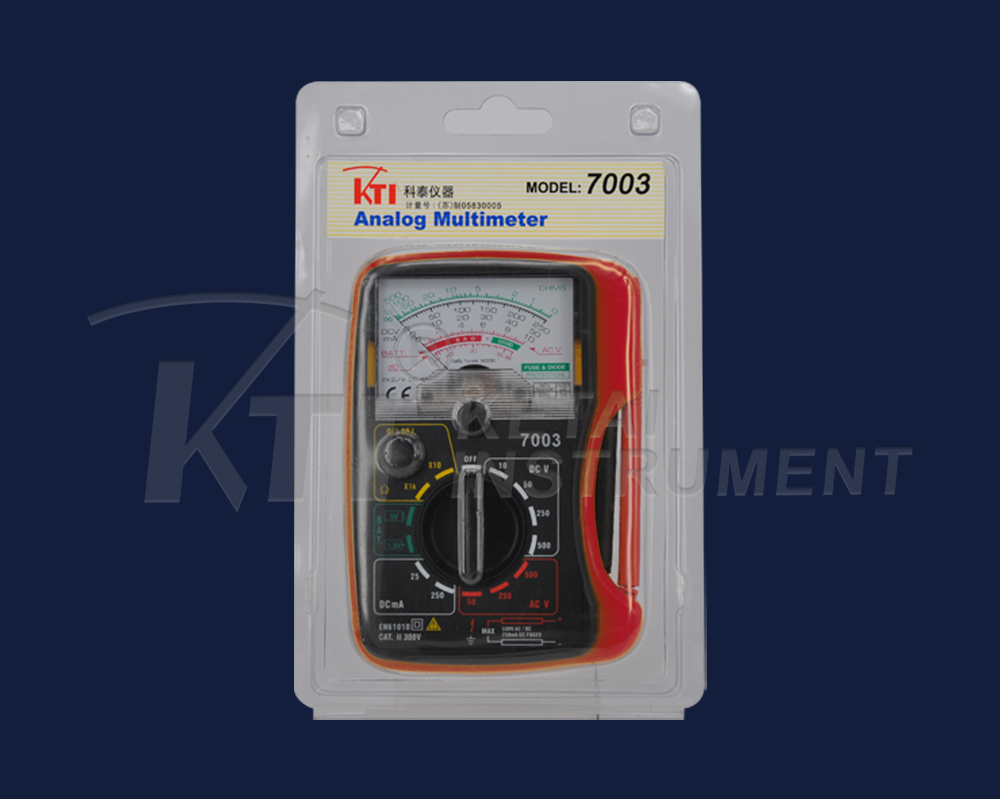

● Accessories included: 1.5V battery, elastomer boot, English manual, full blister
SPECIFICATIONS
DC Voltage 10/50/250/500V (±5.0% f.s)
AC Voltage 50/250/500V (±5.0% f.s)
DC Current 25m/250mA (±5.0% f.s)
Resistance 10K/1MΩ (±5.0% of full arc)
Battery test 1.5V (100mA), 9V (20mA)
dB measurement: -10~56 (0dB 1mW/600Ω)
Operating temperature 0~40℃ (32~104oF) at RH<80%
Dimensions 120x85x30mm
Weight Approx. 185g included battery
Measurement Category EN61010-1,CAT II,300V

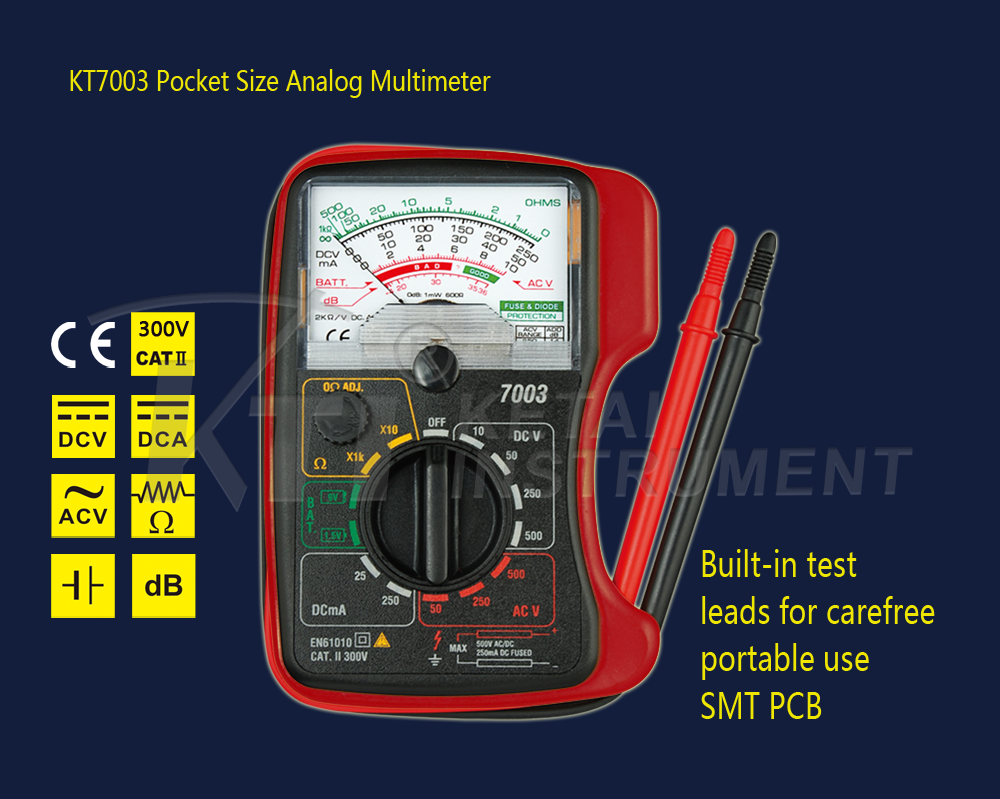

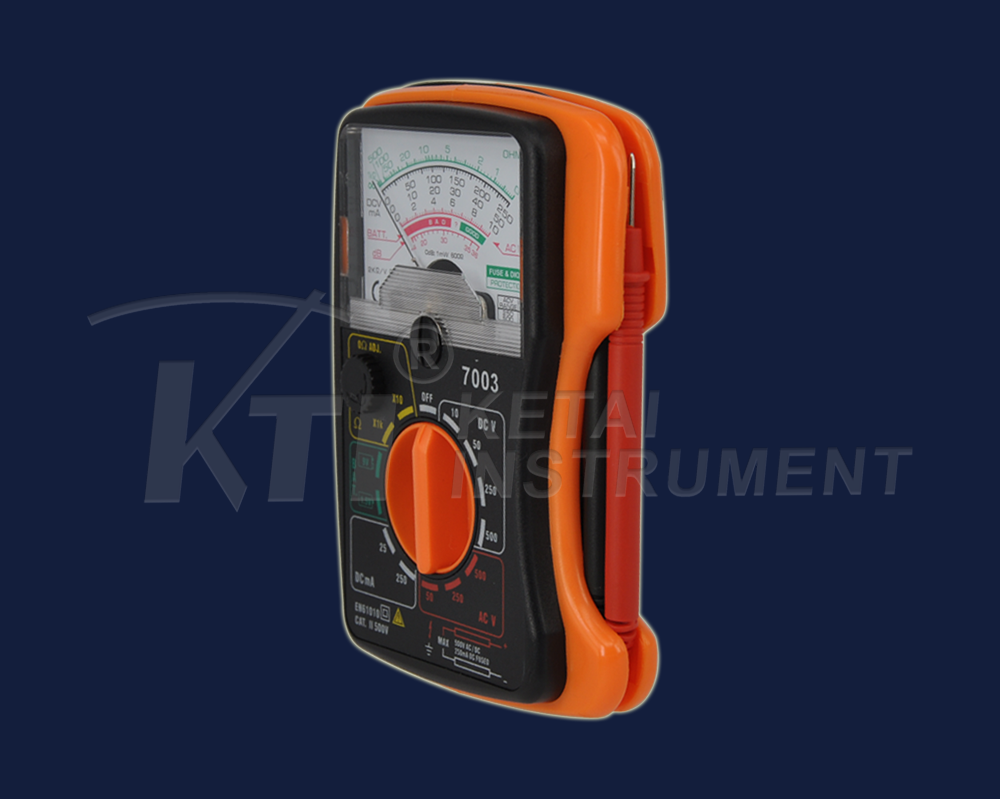

Various expressions of KT7003: mini type, pocket size, thin analog and wire wound.
The meter is also referred to as "magnet multimeter" which can be directly stuck on the surface of the iron distribution box for easy operation.
User should be sure of understanding the full content of the user manual before using.
Always remember: make sure the range is in the right position in the first place, then check the test leads.
Read the SAFETY CAUTION, Maintainance and repair in the user manual.
