● 14 ranges in 5 functions
● AC/DC voltage measurement up to 500V
● DC current measurement up to 250mA
● Resistance measurement up to 500KΩ
● Battery test 1.5V and 9V
● Fuse: F500mA/250V
● Input impedence: 2KΩ/VDC/ VAC
● Accessories included: 1.5V battery, elastomer boot, test leads, English manual, full blister
SPECIFICATIONS
DC Voltage 10/50/250/500V (±4.0% f.s)
AC Voltage 10/50/500V (±5.0% f.s)
DC Current 10m/250mA (±4% f.s)
Resistance 5KΩ(Rx10), 500KΩ(Rx1K) (±4.0% of full arc)
Battery test 1.5V (10/100mA), 9V (10mA)
dB measurement -22~56 (0dB 1mW/600Ω)
Operating temperature 0~40℃ (32~104oF) at RH<80%
Dimensions 97x64x33mm
Weight Approx .110g included battery
Measurement Category EN61010-1,CAT II,600V

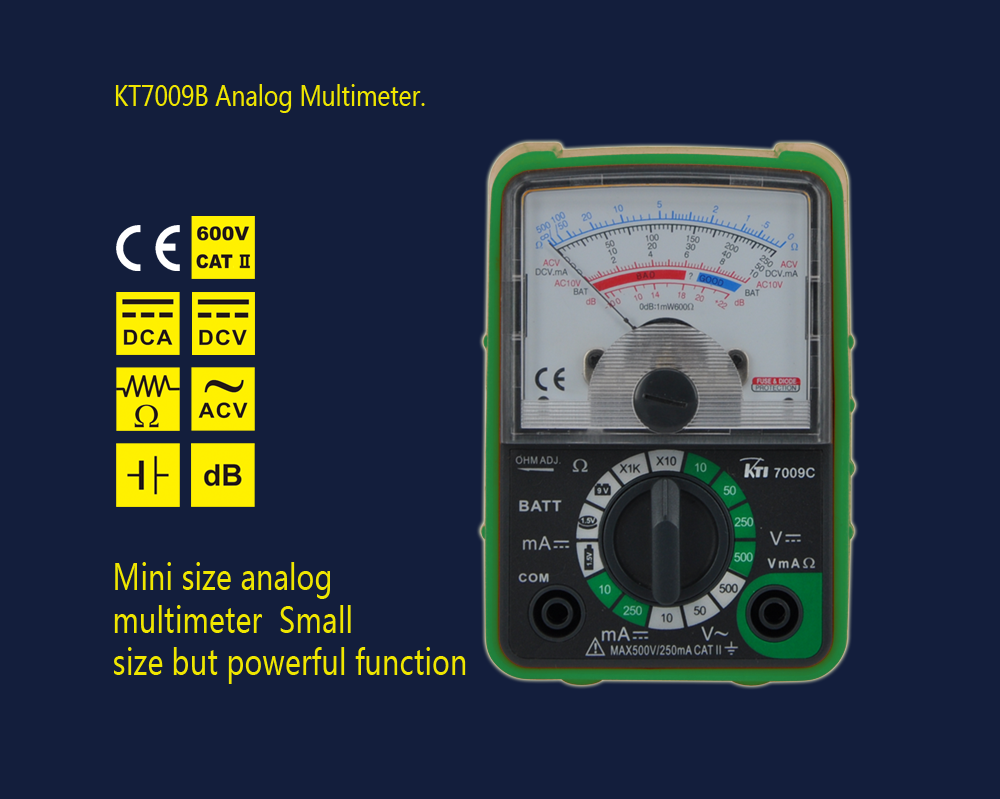

This product is a highly sensitive and accurate analog multimeter.
Please refer to user's manual before operating for safety reason or faulty use.
If there is any doubt or question in usage, user can consult the manufacturer for help.
User should be sure of understanding the full content of the user manual before using.
Always remember: make sure the range is in the right position in the first place, then check the test leads.
Read the SAFETY CAUTION, Maintainance and repair in the user manual.
