● 16 ranges in 6 functions
● AC/DC voltage measurement
● DC current measurement
● Resistance measurement and continuity test
● Battery test 1.5V and 9V

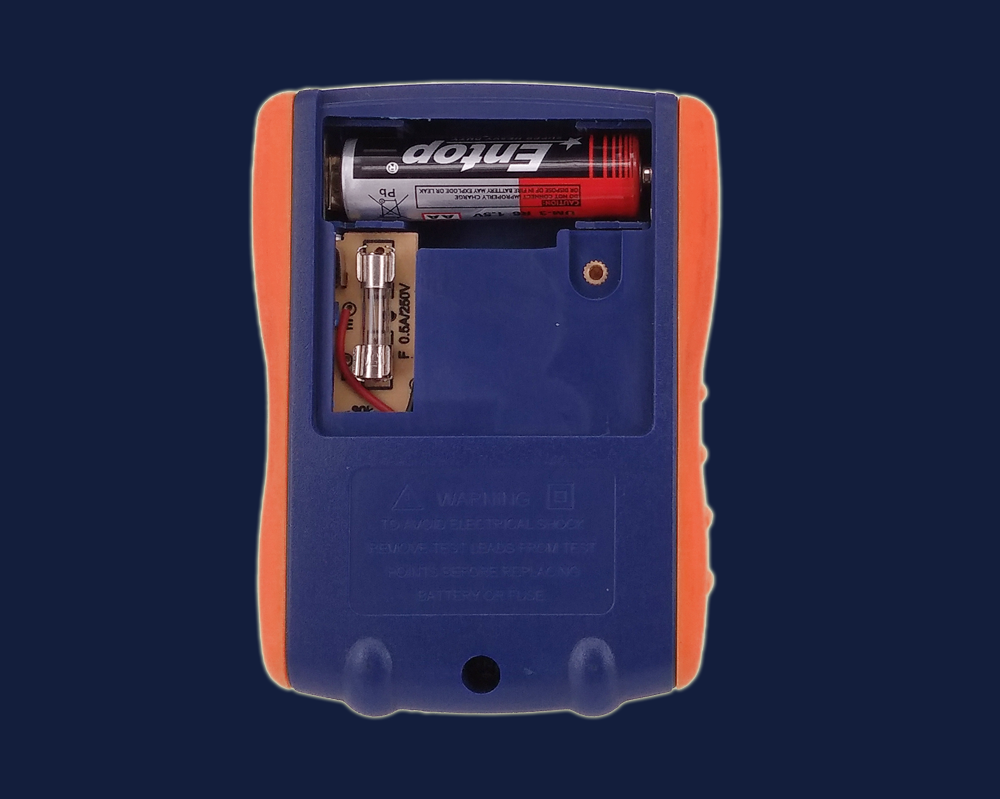

● Fuse: F500mA/250V
● Input impedence: 2KΩ/VDC/ VAC
● Accessories included: 1.5V battery, test leads, English manual, blister card
SPECIFICATIONS
DC Voltage 10/50/250/500V (±4.0% f.s)
AC Voltage 10/50/500V (±5.0% f.s)
DC Current 10m/250mA (±5.0% f.s)
Resistance 5K/500KΩ (±5.0% of full arc)
Battery test 1.5V(AA, AAA, button cell), 9V(6F22)
Continuity test beeper beeps when lower than 20Ω
Operating temperature 0~40℃（32~104 oF）at RH<80%
Dimensions 74x100x33mm
Weight Approx .140g included battery
Measurement Category EN61010-1,CAT II 600V
This product is a highly sensitive and accurate analog multimeter.
Please refer to user's manual before operating for safety reason or faulty use.
If there is any doubt or question in usage, user can consult the manufacturer for help.
User should be sure of understanding the full content of the user manual before using.
Always remember: make sure the range is in the right position in the first place, then check the test leads.
Read the SAFETY CAUTION, Maintainance and repair in the user manual.
