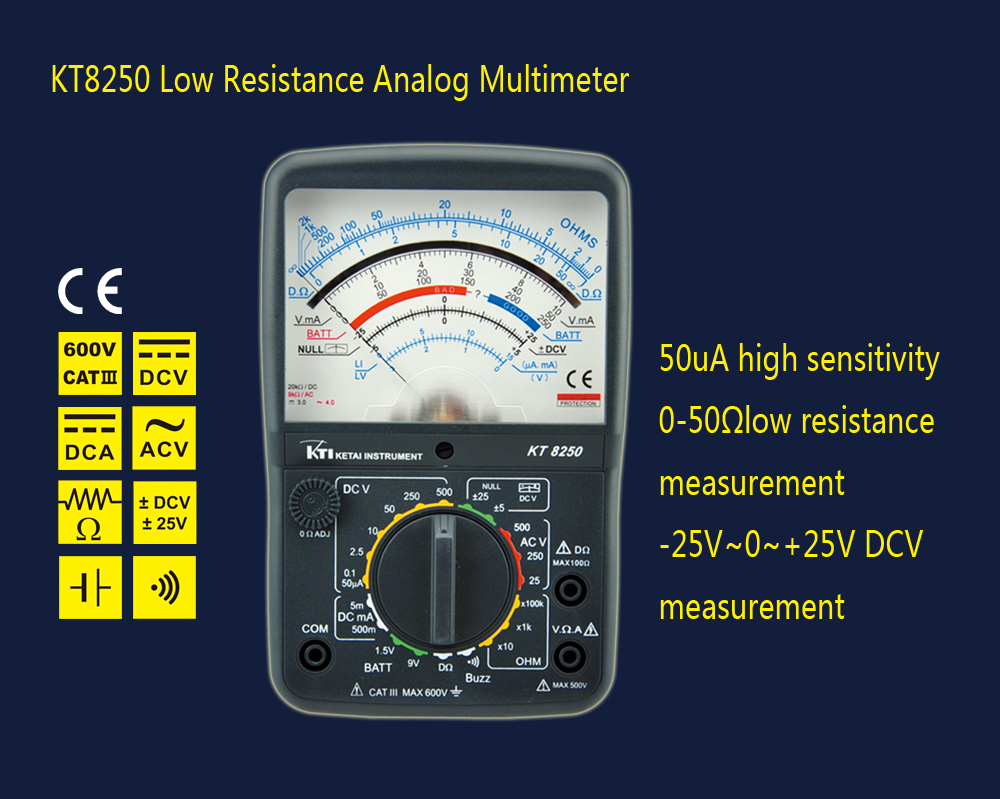

● Low resistance measurement(<50Ω)
● DC voltage ± indication between 0 and 25V
● 20 ranges in 8 functions
● AC/DC voltage measurement up to 500V
● DC current measurement up to 500mA
● Resistance measurement up to 200MΩ
● Audible continuity
● Battery test: 1.5V and 9V
● Input impedence: 20KΩ/ VDC,9KΩ/ VAC
● Accessories included: 1.5V battery, 9V battery, test leads, English manual, gift box
SPECIFICATIONS
DC Voltage 0.1/2.5/10/50/250/500V (±3.0% f.s)
AC Voltage 2.5/250/500V (±4.0% f.s)
DC Current 50μ/5m/500mA (±3.0% f.s)
Low Resistance 0~50Ω (±3.0% of full arc)
Resistance 10/1K/100KΩ (±3.0% of full arc)
DC ± Voltage 0~±5V/±25V (±5.0% f.s)
Audible Continuity Beeper beeps lower than 20Ω
Battery Test 1.5V(125mA), 9V(12.5mA)
Operating temperature 0~40℃（32~104 oF）at RH<80%
Dimensions 158x105x41mm
Weight Approx. 320g included battery
Measurement Category EN61010-1,CAT III 600V
The structure features:
Unique desgin for the battery door for battery's easy replacement.

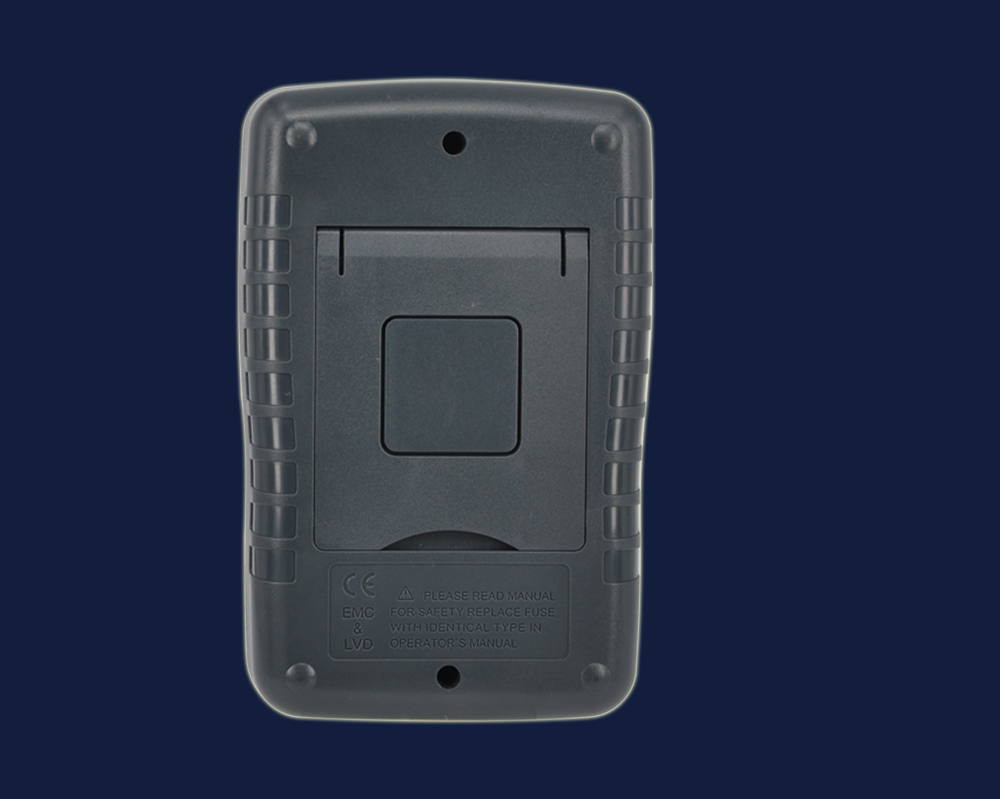

The supporter can not only support the meter in standing status but also can be used as a hanger when flipping over.
The electrical features:
adding 0-50Ω to the original resistance function which increases the accuracy in low resistance measurement.

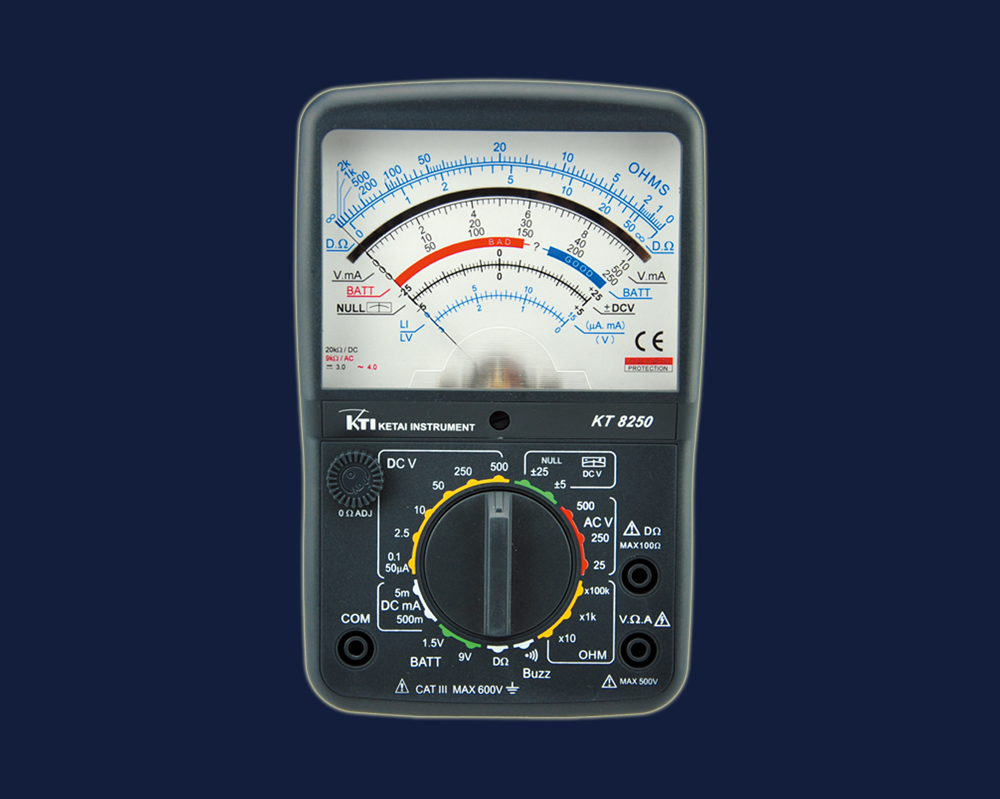

The DC voltage below 25V with positive and negative readings is added to the circuit. The zero position is set in the middle position, so that the positive and negative reading can be indicated on left and right seperately.
User should be sure of understanding the full content of the user manual before using.
Always remember: make sure the range is in the right position in the first place, then check the test leads.
Read the SAFETY CAUTION, Maintainance and repair in the user manual.
