● 20 ranges in 6 functions
● AC/DC voltage measurement up to 500V
● DC current measurement up to 10A
● Resistance measurement up to 2MΩ
● Battery test 1.5V and 9V
● Diode and continuity test
● Fuse: F500mA/250V F10A/250V
● Input impedence: 10KΩ/DCV 4.5KΩ/ACV

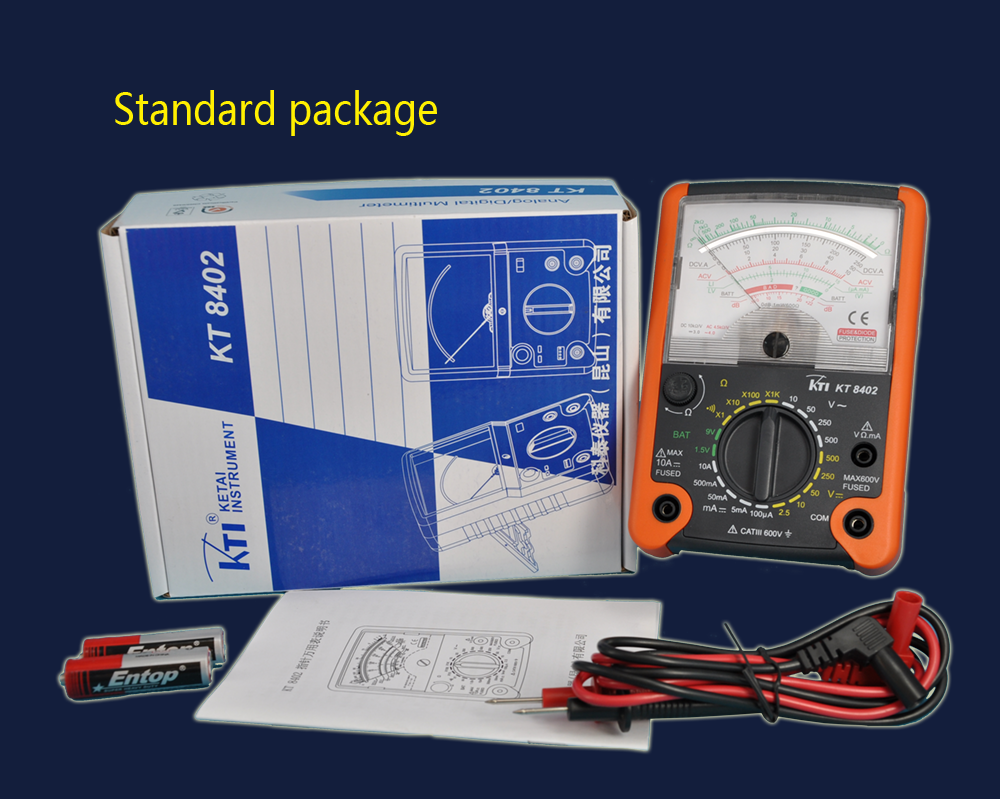

● Accessories included: 1.5V batteryX2, test leads, English manual, giftbox
SPECIFICATIONS
DC Voltage 2.5/10/50/250/500V (±3.0% f.s)
AC Voltage 10/50/250/500V (±4.0% f.s)
DC Current 100μ/5m/50m/500m/10A (±3.0% f.s )
Resistance 2K/20K/200K/2MΩ (±3.0% of full arc)
Battery test 1.5V & 9V
Diode Test
Positive DC current approx.15mA, negative DC voltage
3V(RX10)
Continuity Test Buzzer beeps lower than 40Ω
dB measurement: -10~62 (0dB 1mW/600Ω)
Operating temperature 0~40℃ (32~104oF) at RH<80%
Dimensions 144x100x36mm
Weight Approx. 290g included battery
Measurement Category EN61010-1,CAT III,600V

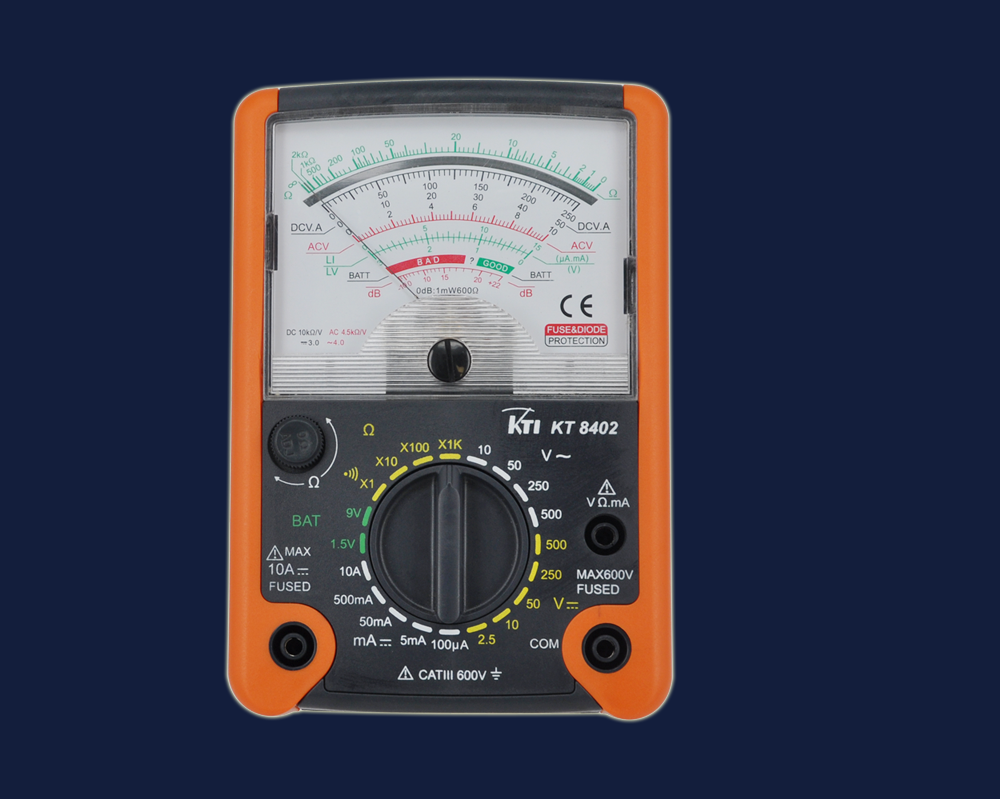

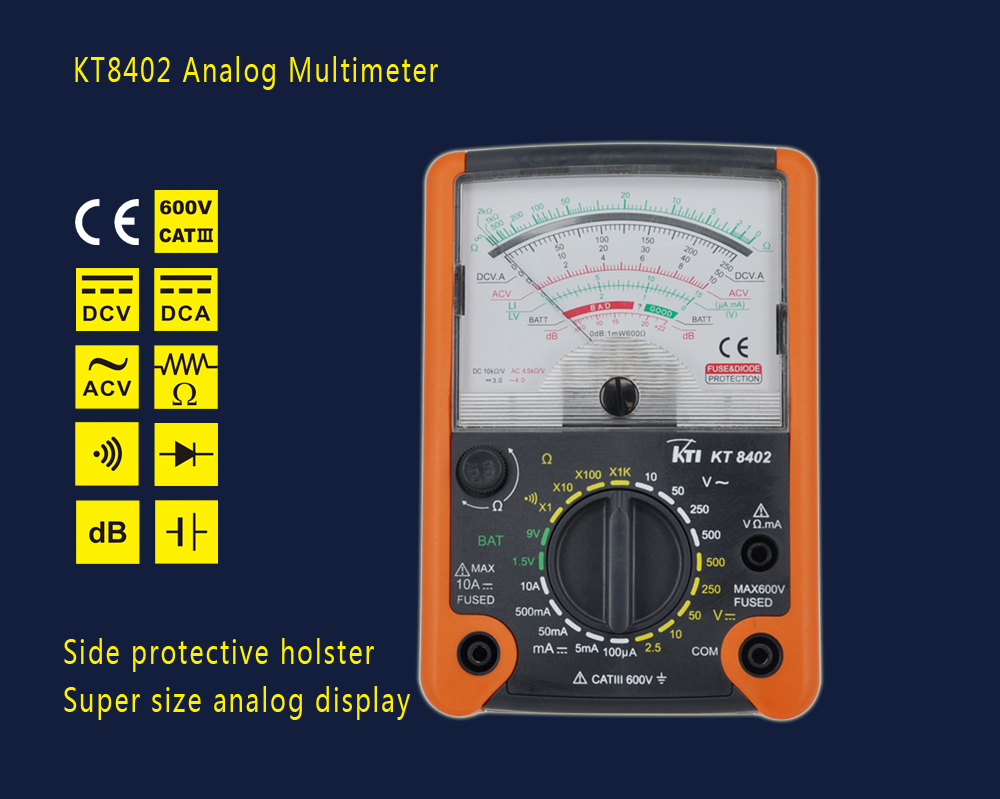

This product is a highly sensitive and accurate analog multimeter.
Please refer to user's manual before operating for safety reason or faulty use.
If there is any doubt or question in usage, user can consult the manufacturer for help.
User should be sure of understanding the full content of the user manual before using.
Always remember: make sure the range is in the right position in the first place, then check the test leads.
Read the SAFETY CAUTION, Maintainance and repair in the user manual.
