● 20 ranges in 7 functions
● Overload protection
● AC/DC voltage measurement up to 1000V
● DC current measurement up to 10A
● Resistance measurement up to 20MΩ
● Audible continuity & diode tests
● LED test
● Input impedence: 20KΩ/ VDC,9KΩ/ VAC

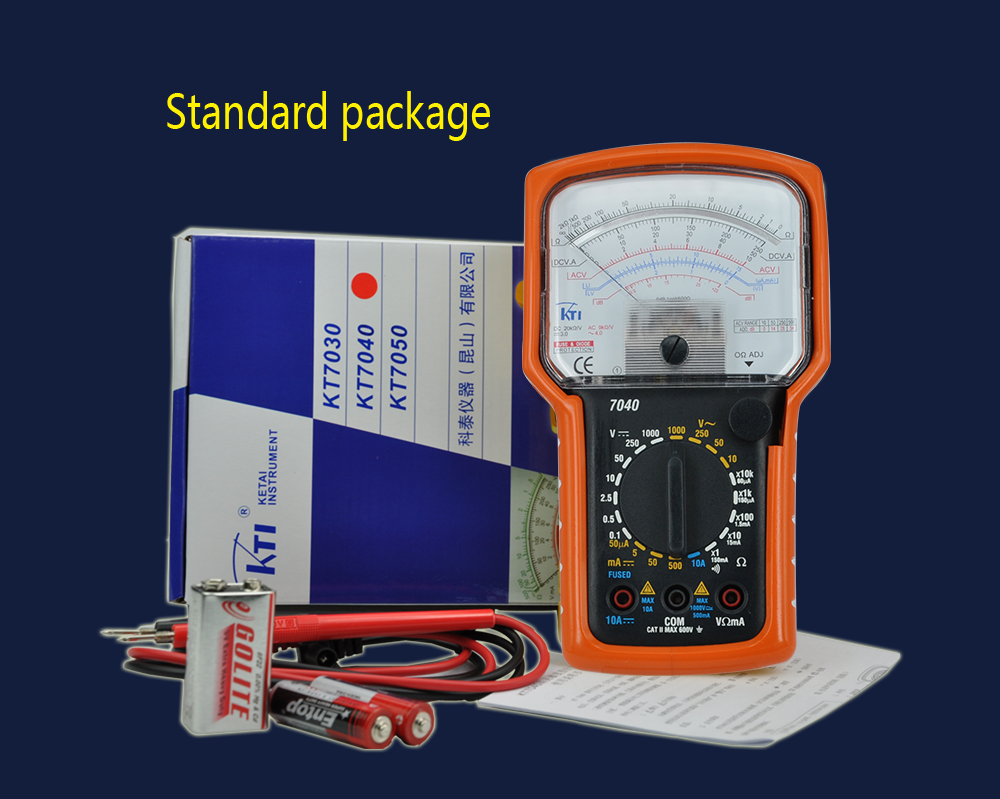

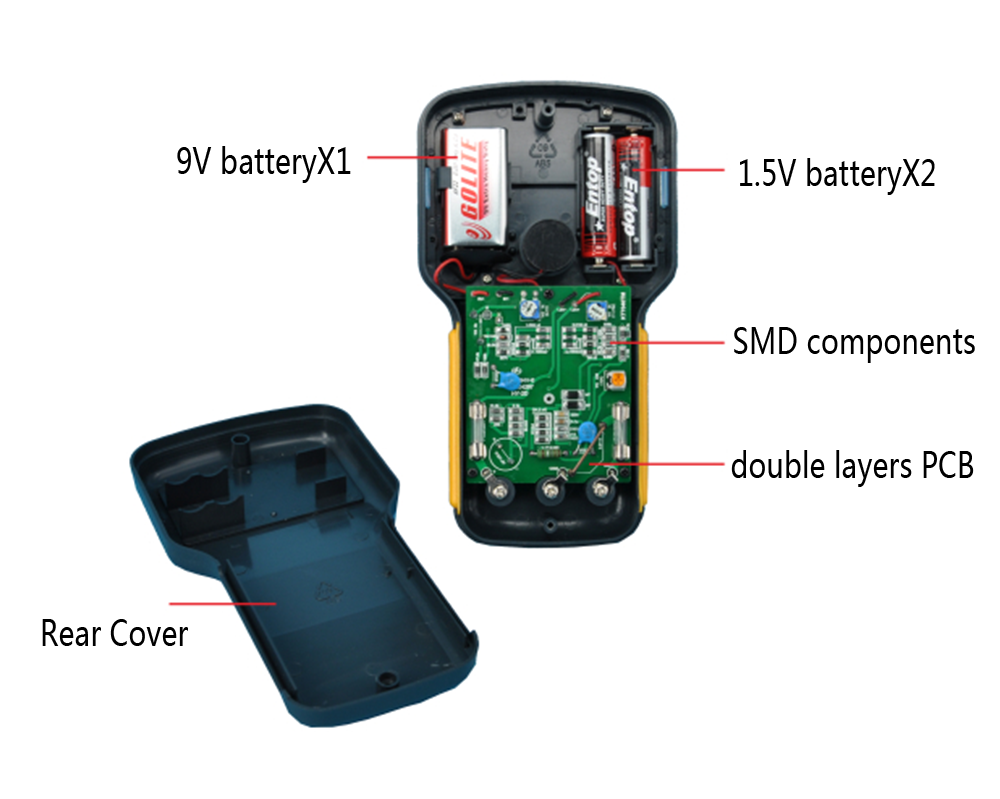

● Accessories included: 1.5V & 9V battery, elastomer boot, test leads, English manual, gift box
SPECIFICATIONS
DC Voltage 0.1/0.5/2.5/10/50/250/1000V (±3.0% f.s)
AC Voltage 10/50/250/1000V (±4.0% f.s)
DC Current 0.05m/5m/50m/500m/10A (±3.0% f.s)
Resistance 2K/20K/200K/2M/20MΩ (±3.0% of full arc)
Diode check(RX10)
Range: Positive DC current(0~15mA),
positive voltage(0~3 V)
Continuity test Approx. 0?30Ω
dB measurement: -10~62 (0dB 1mW/600Ω)
Operating temperature 0~40℃ (32~104oF) at RH<80%
Dimensions 190x108x50mm
Weight Approx. 470g included battery
Measurement Category EN61010-1,CAT II,600V

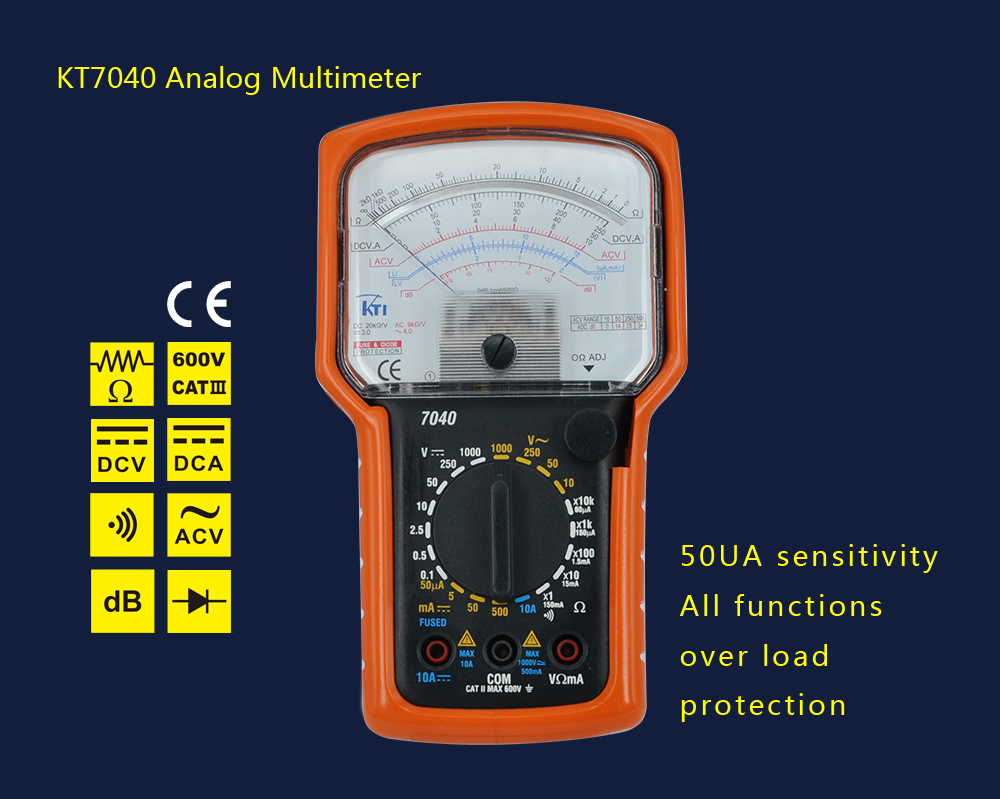

This product is a highly sensitive and accurate analog multimeter.
Please refer to user's manual before operating for safety reason or faulty use.
If there is any doubt or question in usage, user can consult the manufacturer for help.
User should be sure of understanding the full content of the user manual before using.
Always remember: make sure the range is in the right position in the first place, then check the test leads.
Read the SAFETY CAUTION, Maintainance and repair in the user manual.
