Dual display(Analog+LCD)
Overload protection
19 Ranges in 5 functions
AC/DC Voltage measurement up to 500V
DC current measurement up to 10A
Resistance measurement up to 2MΩ
Audible continuity tests
Input impedence: 10MΩ

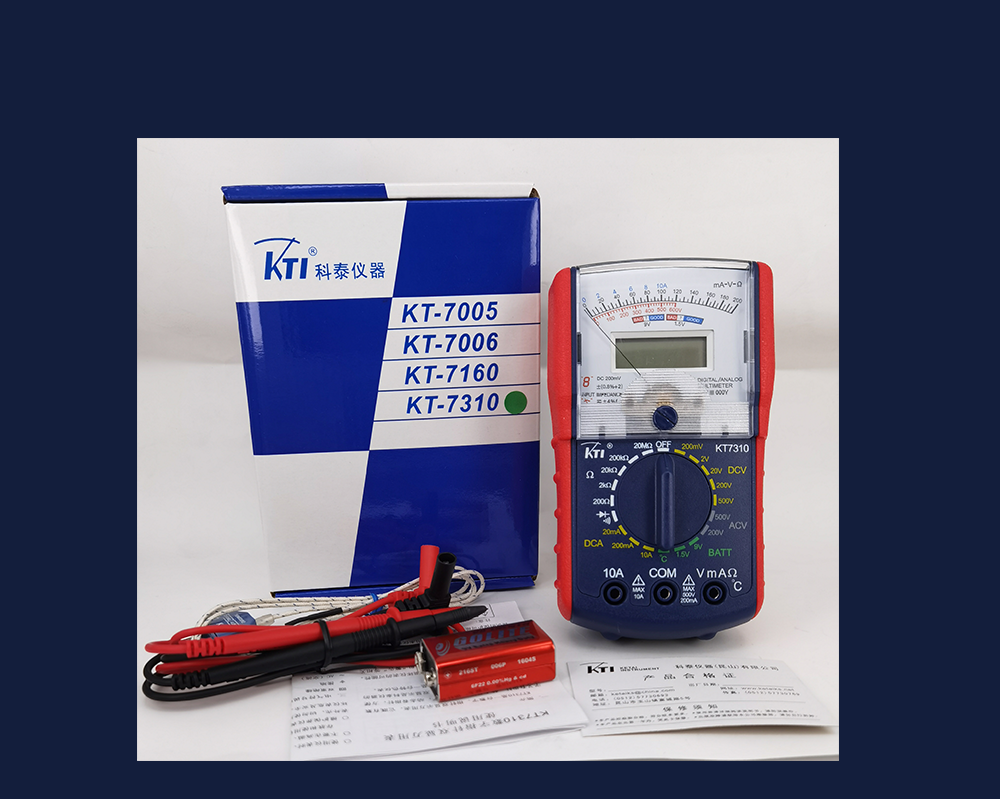

Accessories included: 9V battery, test leads, English manual, giftbox
SPECIFICATIONS
DC Voltage 0.2/2/20/200/500V
AC Voltage 200/500V
DC Current 0.02/0.2/10A
Resistance 200/2k/20k/200k/20MΩ
Battery Test 1.5V and 9V
Continuity test 0?approx. 30Ω
dB measurement: -10~63 (0dB 1mW/600Ω)
Operating temperature 0~40℃ (32~104oF) at RH<80%
Dimensions 180x92x48mm
Weight Approx. 320g included battery

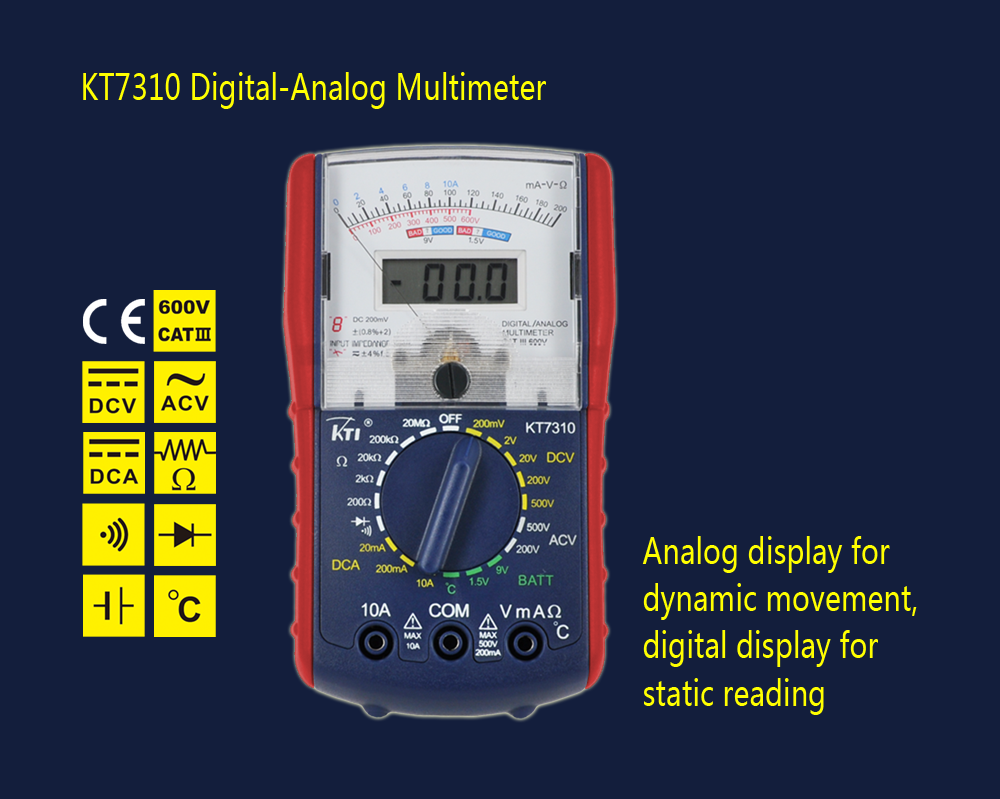

This meter features 2 unique functions: digital reading for static use
and analog pointer for dynamic use, digital and analog testing in the same time. The reading is indicated effectively by digital display and the
moving tendency is well reflected by analog pointer. This feature well solves the analog bar's disadvantage on digital multimeter.
In dual display multimeter's resistance ranges, the pointer will lean to right which physically means COM jack and OHM jack is disconnected,
the resistance between the two jacks is infinite; meanwhile, when the pointer leans to left 0 position, it means short circuit.
Different from common analog multimeter, dual display multimeter doe not need mechanical 0 adjustor, the pointer will rest in 0 automatically.
User should be sure of understanding the full content of the user manual before using.
Always remember: make sure the range is in the right position in the first place, then check the test leads.
Read the SAFETY CAUTION, Maintainance and repair in the user manual.
