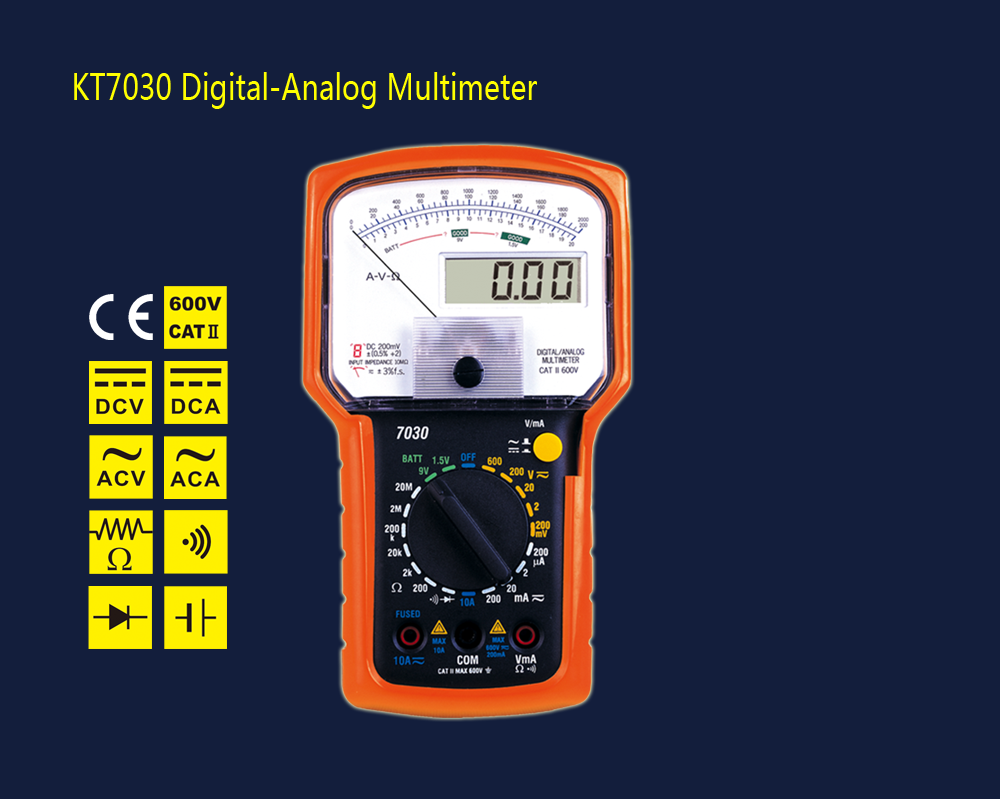

● 20 ranges in 8 functions
● Overload protection
● Dual display (Analog +LCD)
● AC/DC voltage measurement up to 600V
● AC/DC current measurement up to 10A
● Resistance measurement up to 20MΩ
● Audible continuity & diode tests

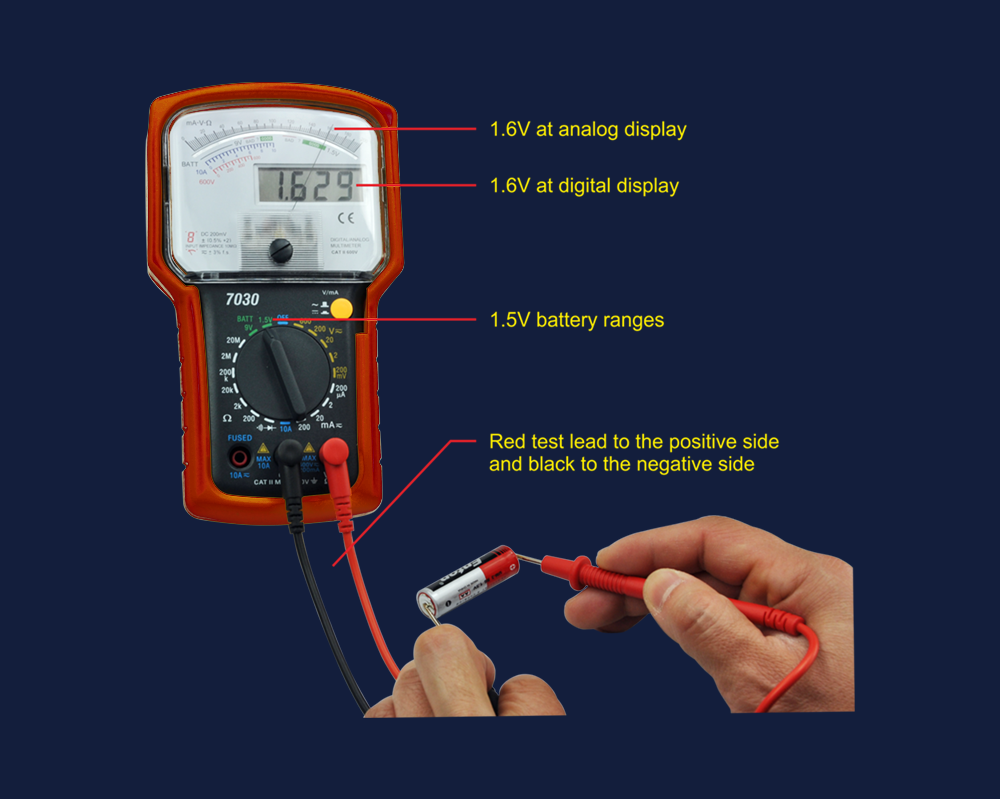

● Battery test :1.5V & 9V
● Input impedence: 10MΩ

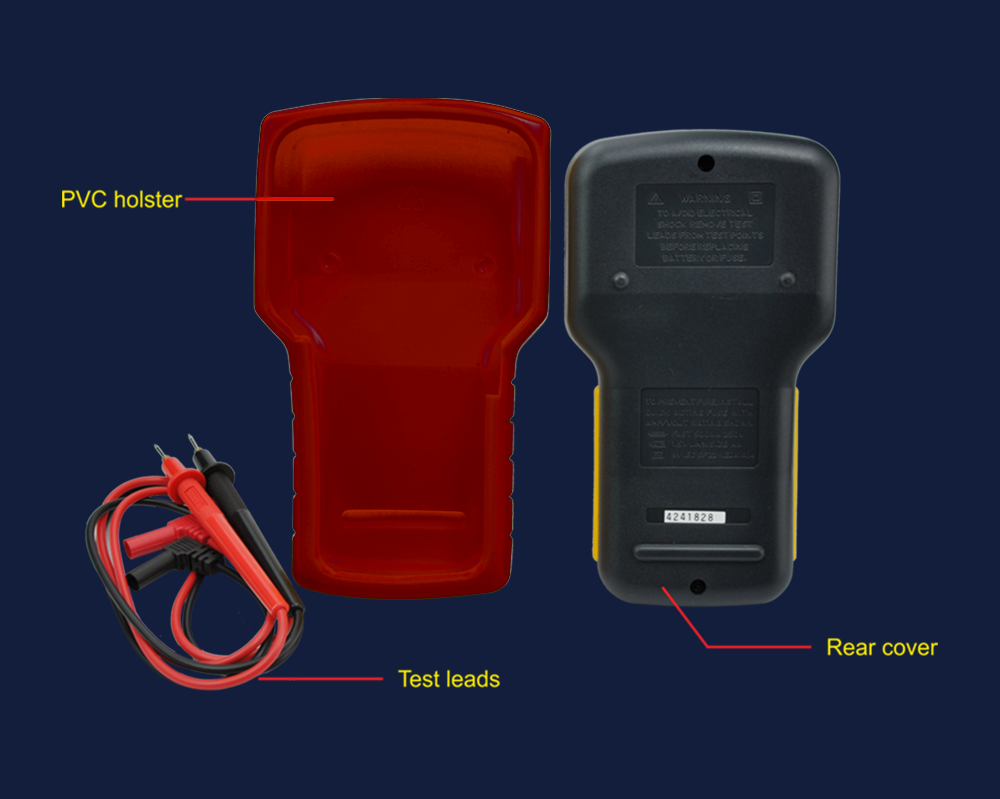

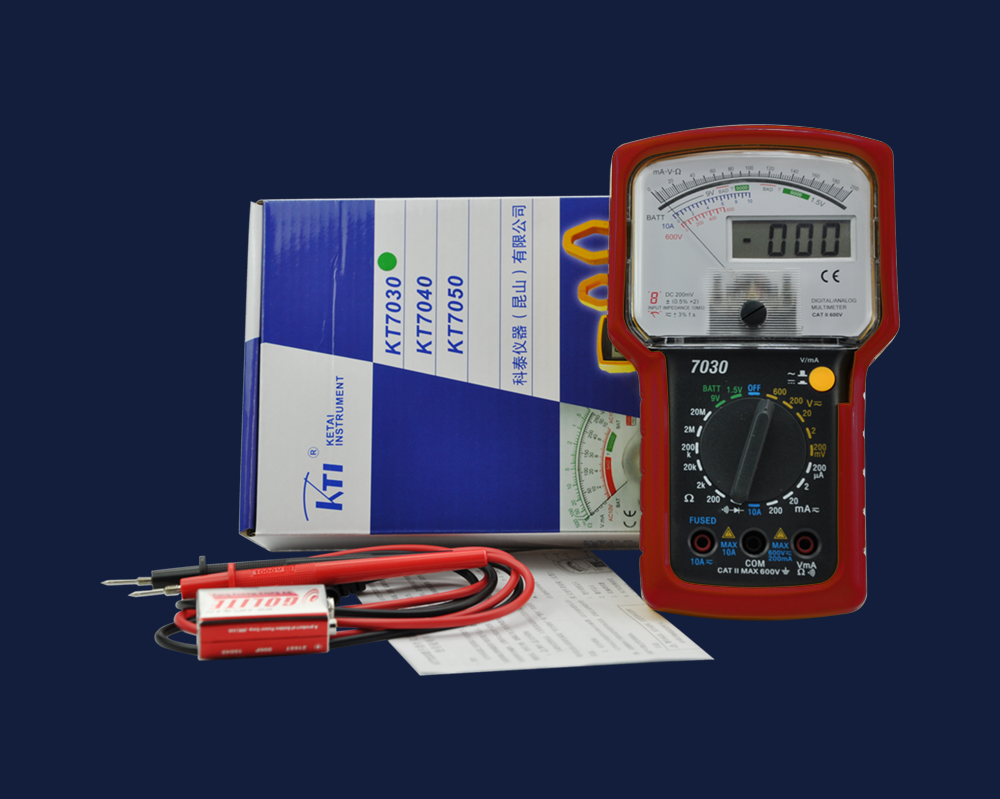

● Accessories included: 9V battery, elastomer boot, test leads, English manual, gift box
SPECIFICATIONS
DC Voltage 0.2/2/20/200/600V ±(0.5%+2d) (±3.0% f.s )
AC Voltage 0.2/2/20/200/600V ±(0.8%+3d) (±4.0% f.s )
DC Current 0.2m/2m/20m/200m/10A ±(1.0%+3d) (±3.0% f.s )
AC Current 0.2m/2m/20m/200m/10A ±(1.5%+3d) (±4.0% f.s )
Resistance
200/2K/20K/200K/2M/20MΩ
±(0.8%+3d) (±3.0% of full arc )
Diode check Test current 1mA, test voltage 2.8V
Battery test 1.5V(100mA), 9V(10mA)
Operating temperature 0~40℃ (32~104oF) at RH<80%
Dimensions 190x108x50mm
Weight Approx.470g included battery
Measurement Category EN61010-1,CAT II,600V

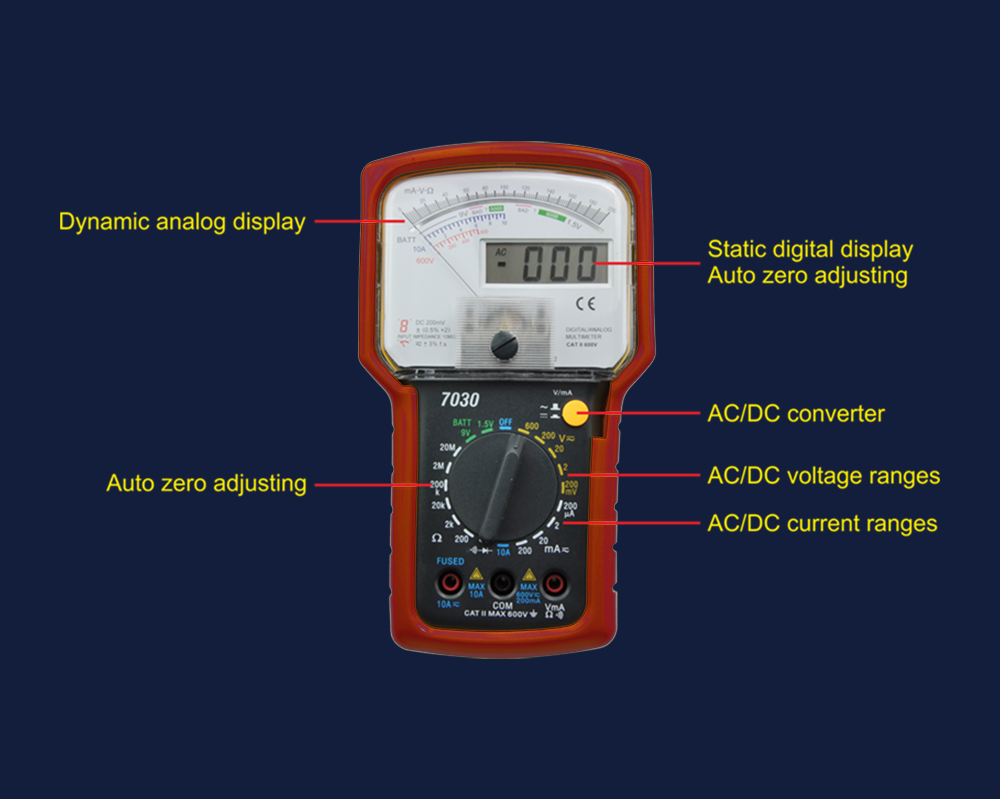

This meter features 2 unique functions: digital reading for static use
and analog pointer for dynamic use, digital and analog testing in the same time. The reading is indicated effectively by digital display and the
moving tendency is well reflected by analog pointer. This feature well solves the analog bar's disadvantage on digital multimeter.

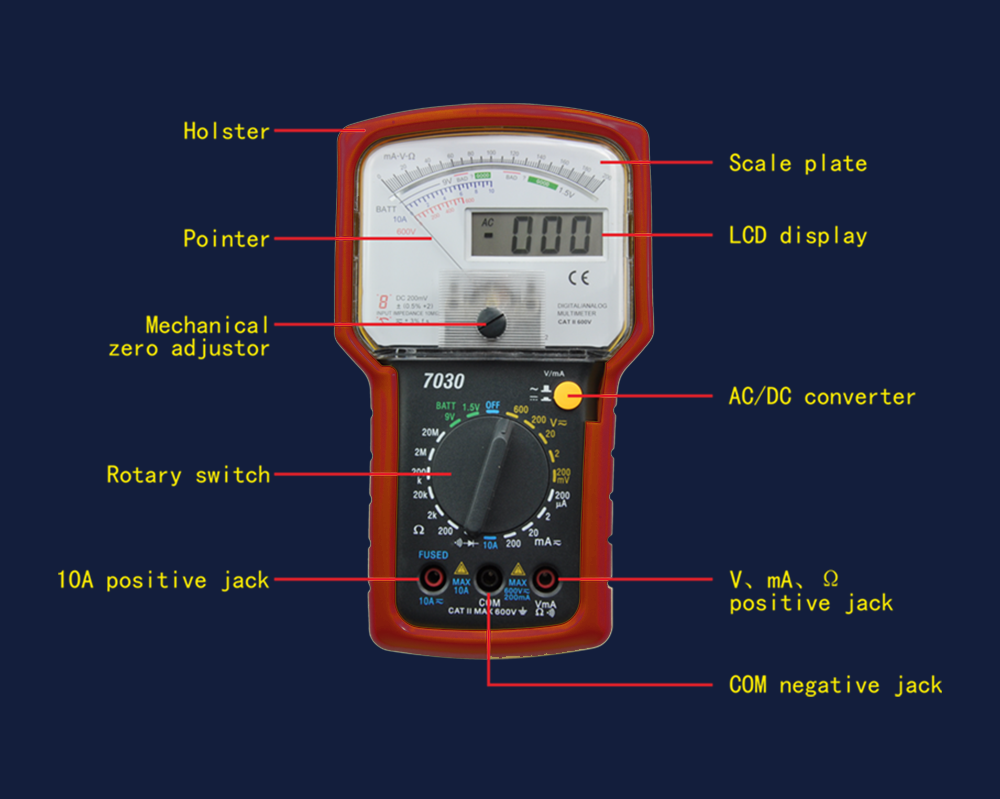

In dual display multimeter's resistance ranges, the pointer will lean to right which physically means COM jack and OHM jack is disconnected,
the resistance between the two jacks is infinite; meanwhile, when the pointer leans to left 0 position, it means short circuit.
Different from common analog multimeter, dual display multimeter doe not need mechanical 0 adjustor, the pointer will rest in 0 automatically.
User should be sure of understanding the full content of the user manual before using.
Always remember: make sure the range is in the right position in the first place, then check the test leads.
Read the SAFETY CAUTION, Maintainance and repair in the user manual.
